Danfoss Hand Valve

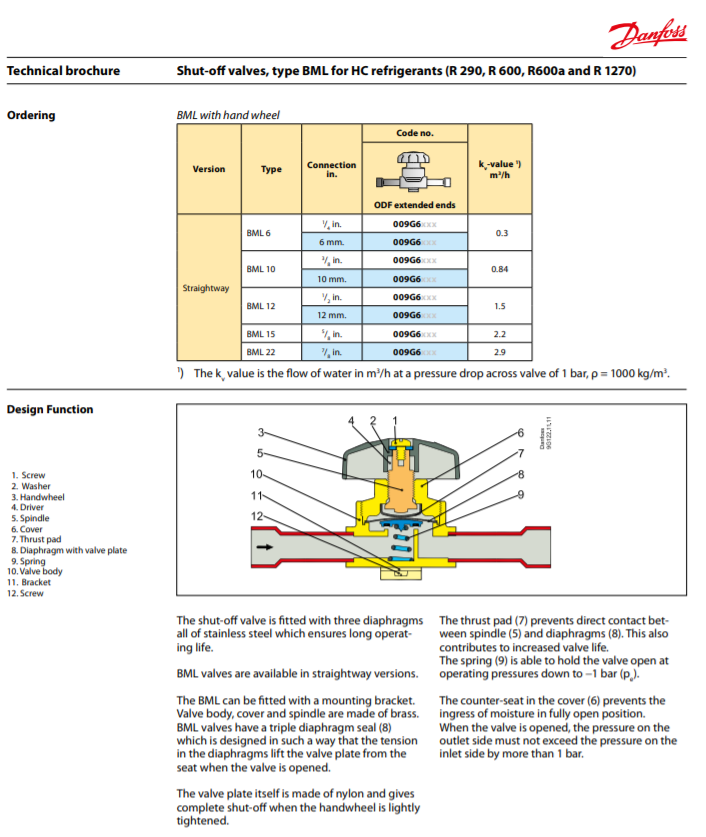

The BML is a manual shut-off valve designed for installation in the liquid, suc-tion and hot gas lines of refrigeration plant.
Features
- Can be used for HC refrigerants (R 290, R 600, R 600a and R 1270).
- Fitted with three stainless steel diaphragms that prevent leakage throughout the operating life of the valve.
- Valve plate of polyamide nylon to give a complete shut-off at minimum torque.
- Valve cover with counter-seat to prevent the ingress of moisture.
Technical data
- Temperature range
-55°C to +100°C - Working range
Delta p = -1 to 21 bar - Max. working pressure
PS = 28 bar - Max. test pressure
p’ = 30.8 bar
| No. | Description |
| DANF-HV-02BML6-0101 | 1/4″ BML6 009G-0101 (FLARE) |
| DANF-HV-02BML6S-0102 | 1/4″ BML6S 009G-0102 (SOLDER) |
| DANF-HV-03BML10-0127 | 3/8″ BML10 009G-0127 (FLARE) |
| DANF-HV-03BML10S-0122 | 3/8″ BML10S 009G-0122 (SOLDER) |
| DANF-HV-04BML12-0141 | 1/2″ BML12 009G-0141 (FLARE) |
| DANF-HV-04BML12S-0142 | 1/2″ BML12S 009G-0142 (SOLDER) |
| DANF-HV-05BML15-0168 | 5/8″ BML15 009G-0168 (FLARE) |
| DANF-HV-05BML15S-0162 | 5/8″ BML15S 009G-0162 (SOLDER) |
| DANF-HV-06BML18-0183 | 3/4″ BML18 009G-0183 (FLARE) |
| DANF-HV-06BML18S-0181 | 3/4″ BML18S 009G-0181 (SOLDER) |
| DANF-HV-07BML22S-0191 | 7/8″ BML22S 009G-0191 (SOLDER) |
